Description

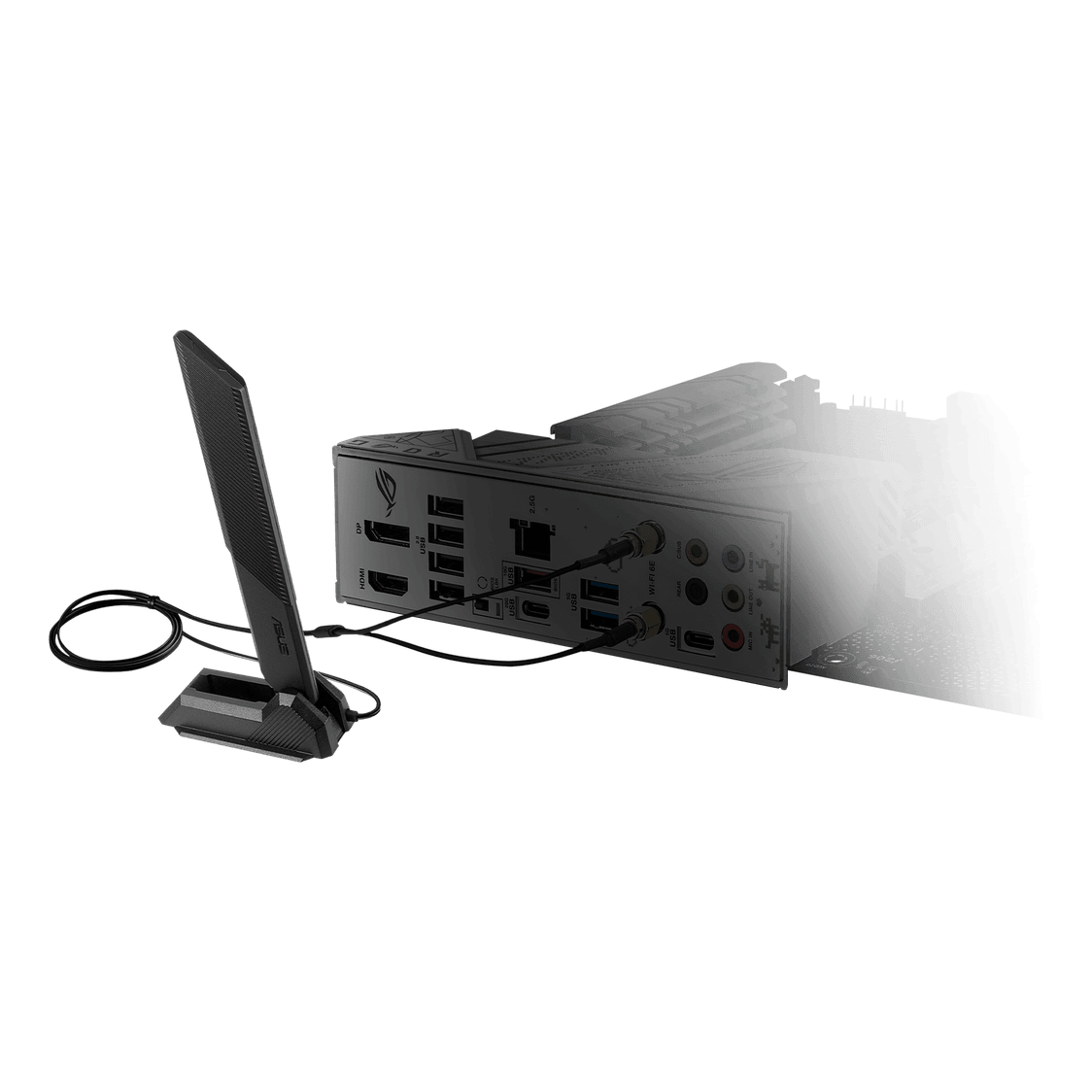

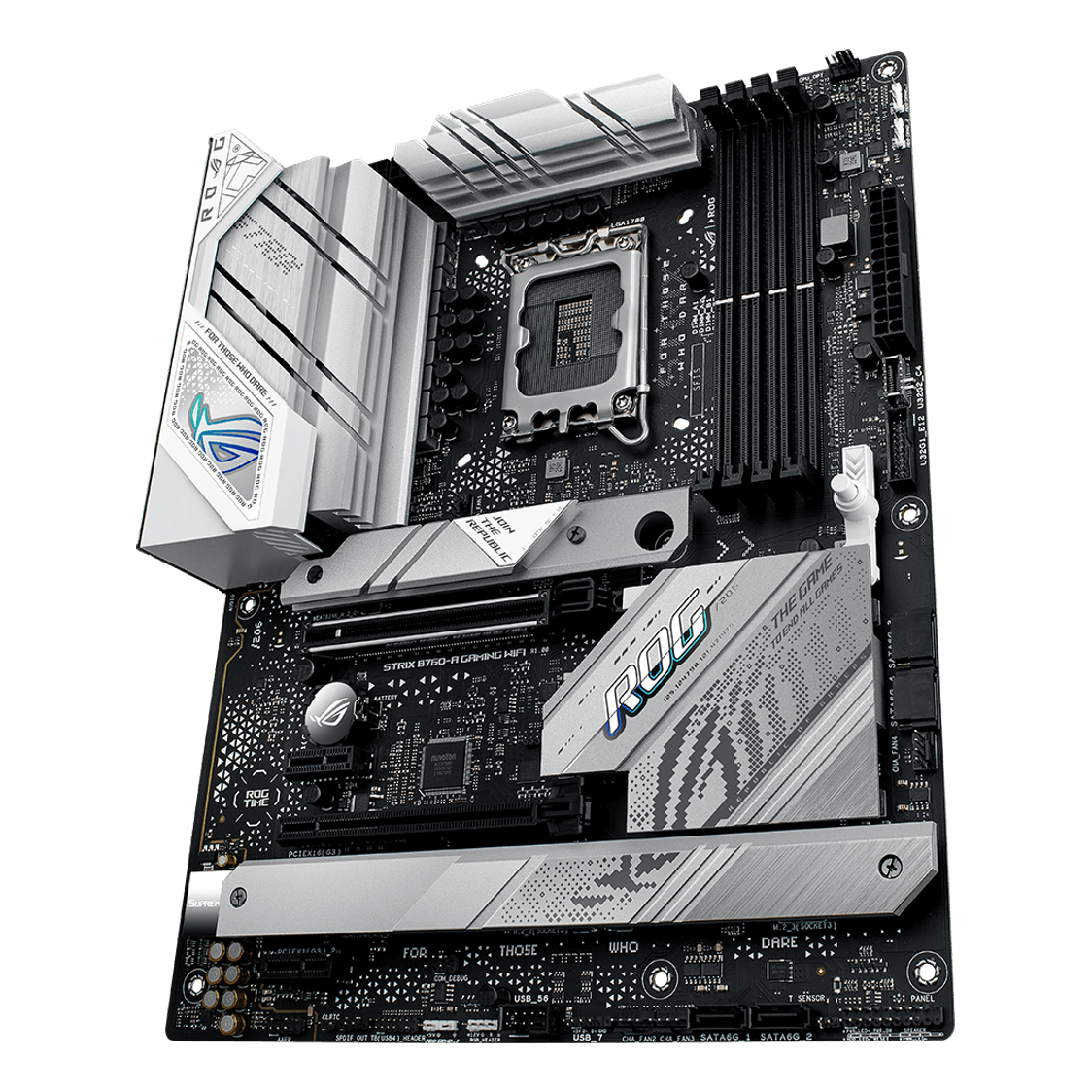

• Motherboard Specification • Model: ASUS ROG STRIX B760-A GAMING WIFI • Chipset: Intel B760 • CPU Support: – Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron (Socket LGA 1700) • Form Factor: ATX • Memory Support: – 4 × DDR5 DIMM slots – Up to 192GB total capacity – Up to 7800+ MT/s (OC) – Dual-channel architecture – Supports Intel XMP and AEMP II profiles • Expansion Slots: – 1 × PCIe 5.0 x16 (CPU) – 1 × PCIe 3.0 x16 (x4 mode) – 2 × PCIe 3.0 x1 • Storage: – 3 × M.2 PCIe 4.0 x4 (NVMe only) – 4 × SATA 6Gb/s ports • Graphics Output: – 1 × HDMI 2.1 – 1 × DisplayPort 1.4 • Audio: – ROG SupremeFX 7.1 Surround Sound – ALC4080 codec + Savitech amplifier • Networking: – Intel Wi-Fi 6E (802.11ax) – Bluetooth 5.3 – Intel 2.5Gb Ethernet with LANGuard • USB Ports: – Rear I/O: • 1 × USB 3.2 Gen 2x2 Type-C • 3 × USB 3.2 Gen 2 Type-A • 4 × USB 2.0 – Internal Headers: • 1 × USB 3.2 Gen 2 Type-C • 2 × USB 3.2 Gen 1 • 2 × USB 2.0 • Internal Connectors: – 1 × 24-pin ATX – 1 × 8-pin + 1 × 4-pin CPU power – 6 × fan headers – 2 × ARGB headers – 2 × RGB headers – TPM, Thunderbolt header, front panel audio • DIY Features: – PCIe Q-Release – M.2 Q-Latch – BIOS FlashBack™ – Q-LED diagnostic indicators • BIOS: – UEFI AMI BIOS with MemTest86 – 256Mb Flash ROM • Software: – Armoury Crate, AI Networking, Two-Way AI Noise Cancelation • Dimensions: 305 × 244 mm • Color: White and silver cyber-themed design
